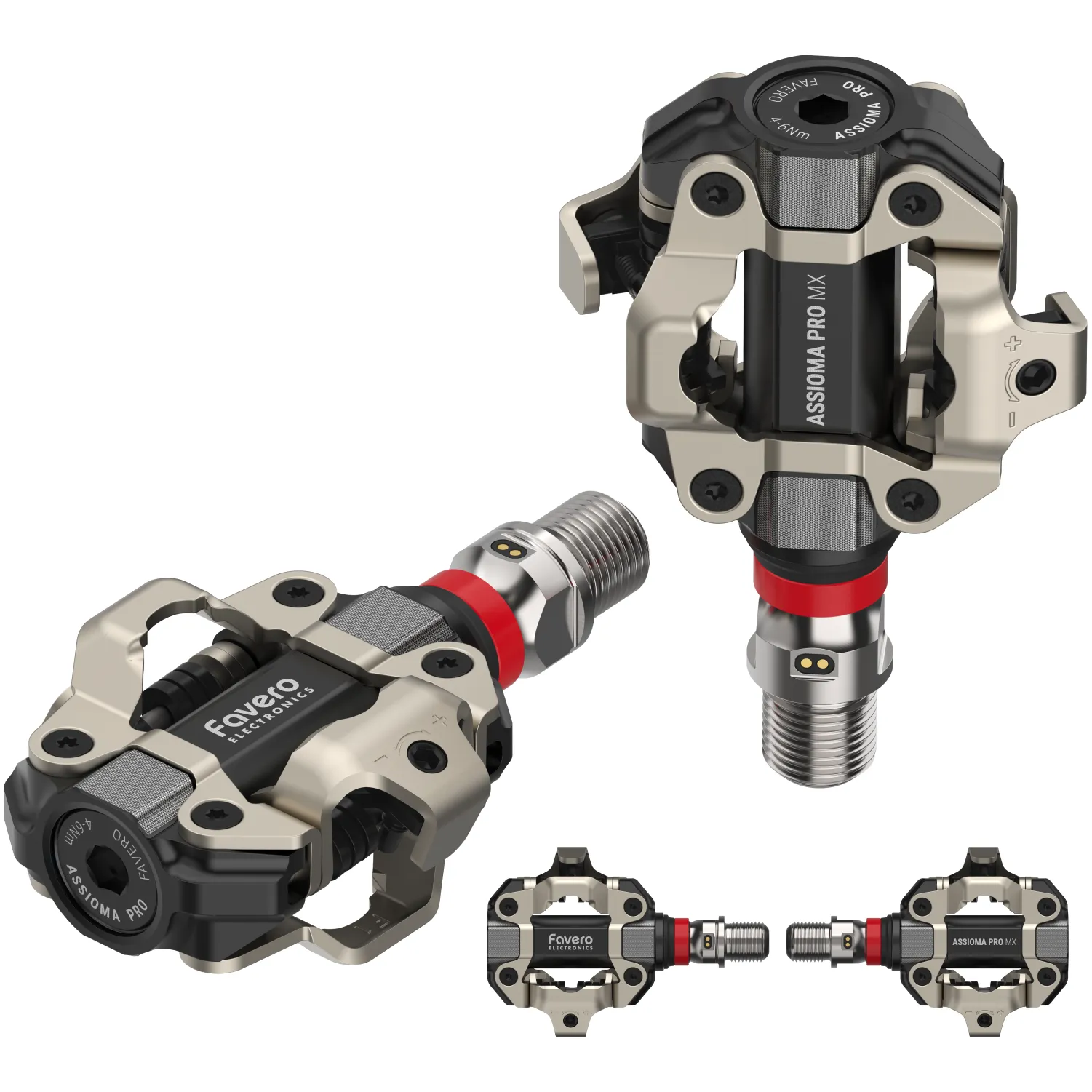

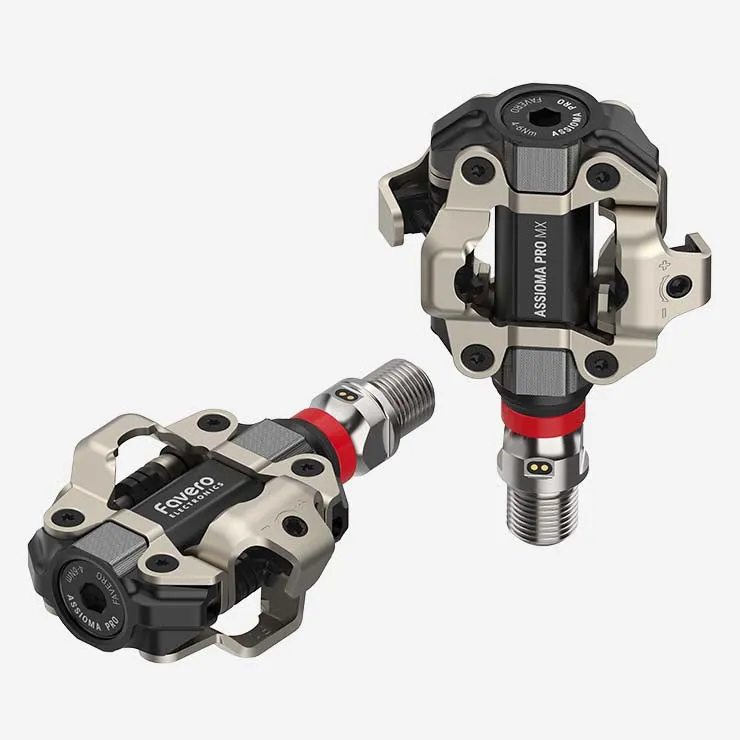

Assioma PRO MX is the revolutionary pedal-based power meter for MTB and gravel 100% SPD compatible.
You can use it with the cleats provided within the box or with the original Shimano SM-SH51.
It inherits the reliability and extreme precision of the Favero road power pedals, adding unparalleled resistance to shocks during your challenges on the trail.

Key Features:

• Universal Compatibility: Favero Assioma PRO MX power meter pedals are easy to install and compatible with most bike computers, smartwatches, and training apps thanks to Bluetooth and ANT communication channels.
• Robust Design: Featuring a compact spindle housing electronic components and a rechargeable battery, the pedal is IP67-certified, ensuring resistance to water, mud, and dust, guaranteeing reliability even in adverse weather conditions.
• Extreme Durability: Constructed with aluminum 6061-T6 pedal body and a clipless system with a surface hardness of up to 800 HV, the power meter pedals are highly resistant to shocks and impacts, suitable for all types of terrain.
• Advanced Data Measurement: With the IAV Power System, the Assioma PRO MX offers ±1% accuracy in power measurement, taking into account irregular pedaling and oval chainrings. It provides comprehensive data reading including power, cadence, pedal smoothness, and more via ANT and Bluetooth.

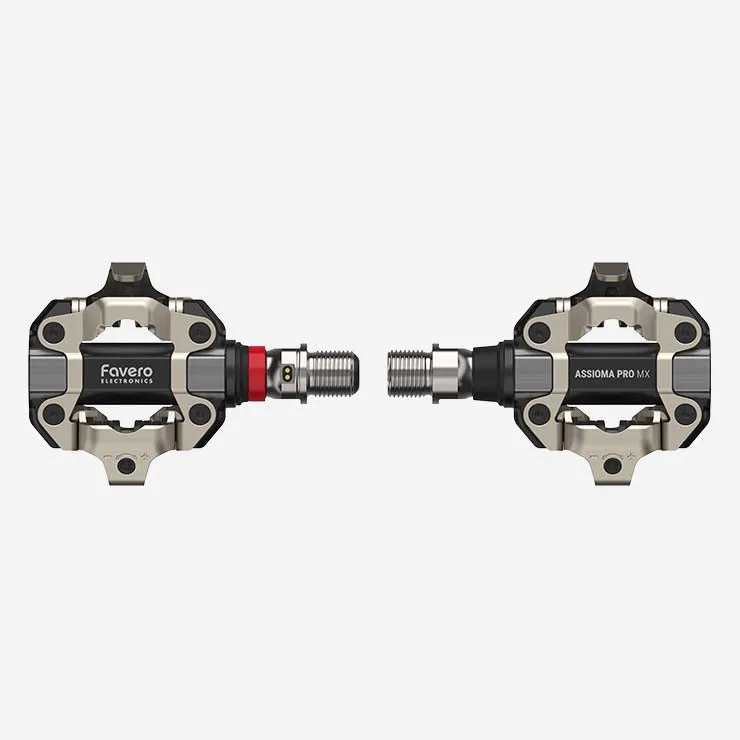

MX-1: Pedals for MTB and gravel with power sensor only on the left side

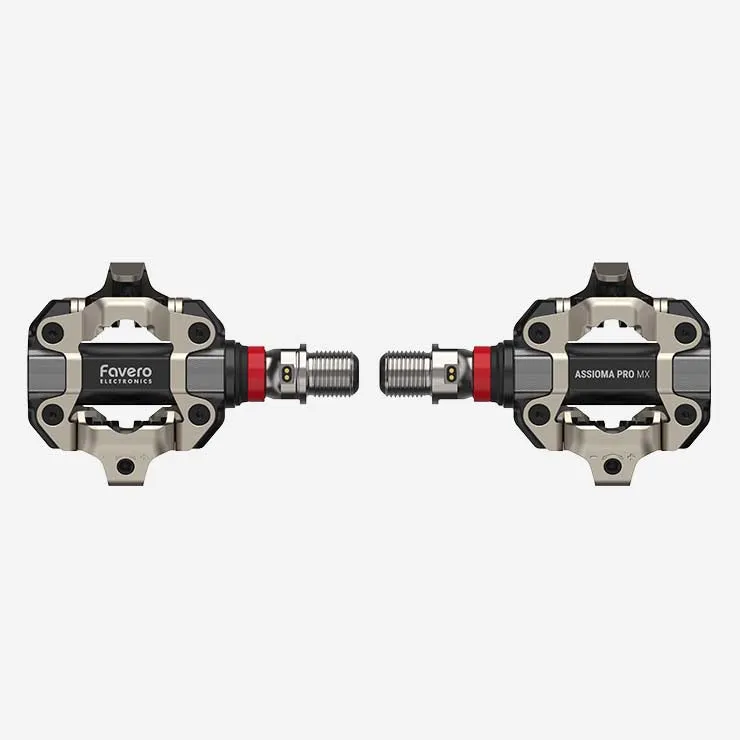

MX-2: Pedals for MTB and gravel with power meter on both sides, L/R Balance

• Weight per power pedal: 191.4 g
• Cadence sensor: included, inbuilt
• Gyroscope: included, inbuilt
• Power calculation system: IAV (Instantaneous Angular Velocity-based)
• Cycling Dynamics: Available
• Data visible via ANT or on the Favero Assioma App:
  • Power
  • Cadence
  • PCO
  • Power Phase (PP)
  • Pedal Smoothness (PS)
  • Torque Efficiency (TE)
  • Rider Position (no App Favero Assioma)
• Data visible via Bluetooth:
  • Power
  • Cadence
• Oval-chainrings compatible: yes
• Battery type: rechargeable, lithium-ion
• Battery life: at least 60 hours
• Radio communication: ANT , Bluetooth
• Accuracy power measurement: ± 1%
• Thermal compensation: -10°C / 55°C
• Waterproofness rating: IP67
• Stack height: 11,2 mm
• Compatible cleats:
  • Provided cleats (art. 773-00-62)
  • Shimano SM-SH51cleats
• Bike types: MTB XC, CX, gravel
• Made in Italy
• Warranty: 2 yrs
